Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | ABis-00010 |
| Certification : | UL |
| Price : | 0.1-0.8 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 500000 |
| Delivery Time : | 5-8 working day |

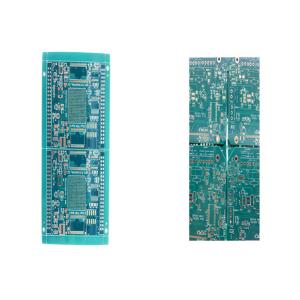

CEM1 RoHS Compliant Lead Free HASL FR4 Prototype PCB Board 1-20 Layers PCB Printed Circuit Board
ABIS CIRCUITS CO., LTD
Our Mission
PCBs for demanding customers, on time with zero defects, produced
sustainably at the lowest total cost. Manufacturing many different
types of PCBs in smaller series (High-mix, Low-volume) involves
constantly adjusting, adapting and problem solving.
Our responsibility
We know that the PCB is a critical key component for our customers.
And we know for sure that anything can happen during the complex
production process involved – and it often does. In our world,
taking full responsibility means a lot of things, including a
responsible and sustainable approach in everything we do –
socially, environmentally and ethically. When a problem occurs, we
try as hard as we can to understand the problem and find a
solution. Our mindset is that we own the problem and don’t leave
until we have cleared it up.
PCB Product Description
| Item | Capacity |
| Raw material | CEM1, CEM3, FR1 FR4, Rogers, Teflon, etc. |
| Layer | 1 Layer-20 Layer |
| Min.Line width/space | 3mil/ 3mil (0.075mm/0.075mm) |
| Min.hole size | 0.1mm(drilling hole) |
| Max. Board size | 1200mm* 600mm |
| Finished board thickness | 0.2mm-6.0mm |
| Cooper foil thickness | 18um- 280um (0.5oz-8oz) |
| NPTH Hole Tolerance | +/- 0.075mm |
| PTH hole Tolerance | +/-0.05mm |
| Outline tolerance | +/-0.13mm |
| Surface finished | Lead-Free HASL, immersion gold(ENIG), Immersion silver, OSP, gold plating, gold finger, Carbon INK |
| Impedance Control Tolerance | +/-10% |
| Production capability | 50,000 s.q.m/ month |
Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
Factory Overview
FAQ
Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?
Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality
checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and
Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working
file be approved, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
. We have two shop together, one is for prototype, quick turn,
small volume making. The other is for mass production also for HDI
board, with highly skilled professional employees, for high quality
products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic
supports, on a world-wide basis.hours complaint feedback
|
|
